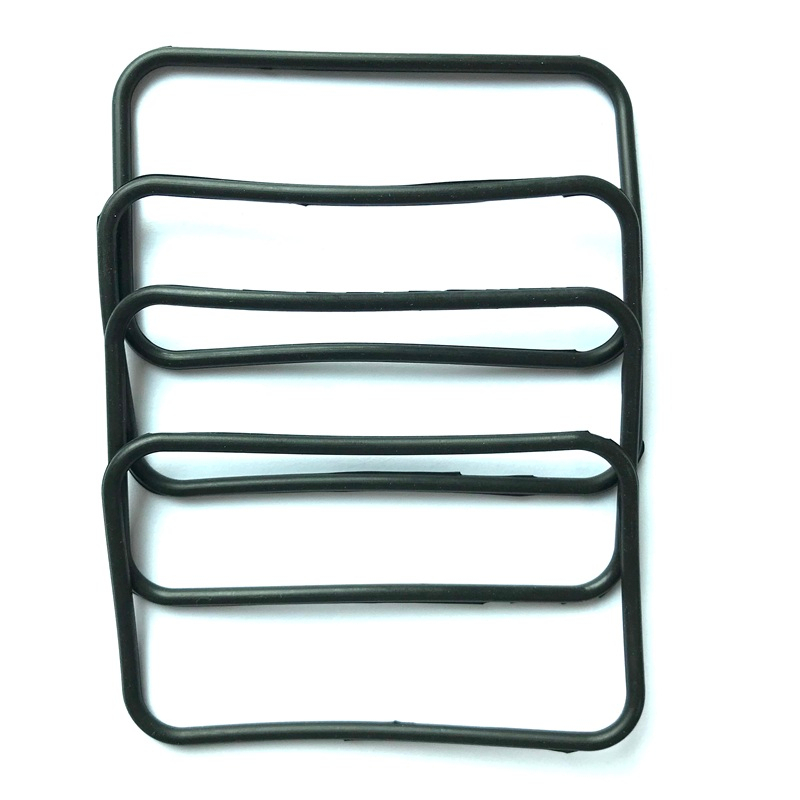

Auto Part Rubber Seal Transmission Seal FKM Rubber Gasket

FKM (fluororubber) gasket is a sealing element made of fluorinated monomer copolymer. The carbon fluorine bonds in its molecular chain endow it with excellent high temperature resistance, with a working temperature of up to 200 ° C-260 ° C. It has excellent chemical corrosion resistance, especially to mineral oil, fuel, strong acids, and various organic solvents, and cannot be replaced in harsh working conditions such as aerospace, automotive engines, and chemical seals.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Advantage

1. FKM gasket molecules contain fluorine elements and are made of the globally renowned VITON fluororubber material. Produced through molding process. High precision, high stability, smooth surface, no burrs or cracks.

2. Fluororubber gaskets have the strongest high temperature resistance among all rubber gaskets. It can work for a long time in an environment up to 250 ℃. It is an advanced alternative to NBR rubber gaskets, compensating for the disadvantage of NBR rubber gaskets not being resistant to high temperatures.

3. Fluororubber gaskets have extremely strong oil and solvent resistance. Has excellent resistance to mineral oil, hydraulic oil, gasoline/diesel, lubricating oil, and aromatic solvents, with minimal expansion in oil media.

4. Good mechanical strength, with a tensile strength of up to 16MPa. Oil resistant and high-temperature resistant FKM gaskets are commonly used as oil seals, hydraulic seals, or mechanical seals together with metal seals in automobiles or machinery.

Technical Parameters

Item		Unit	FKM Gasket
Normal Condition	Color	/	Black,Green,Brown
	Hardness	Shore A	40—90
	Tensile Strength	MPa	9.3—16.2
	Elongation	%	135—492
Compression Set (200°C/22h)		%	11—22
Hot Air Aging (250°C/70h)	Hardness Change	Shore A	1—4
	Tensile Strength Change	%	-1—-20
	Elongation Change	%	-1—15
Oil Resistance Test (IRM901#) (200°C/70h)	Hardness Change	Shore A	-7—-11
	Tensile Strength Change	%	-5—22
	Elongation Change	%	-2—-14
	Volume Change	%	11—14
Oil Resistance Test (IRM903#) (200°C/70h)	Hardness Change	Shore A	-11—-35
	Tensile Strength Change	%	-10—-34
	Elongation Change	%	-5—-18
	Volume Change	%	15—22
Low Temperature Resistance Test	Brittle Temperature	°C	-20—-40

Fluorine Rubber(FKM, VT)

Temperature Range: -20 °C to 250 °C

Advantage: Excellent heat, oli, acid and alkali resistance

Disadvantage: Substandard cold resistance

Use: Oil & Heat resistance situation

Product Uses

Here are specific application scenarios for FKM gasket:

1. Automotive industry: FKM gaskets are mainly used in automobiles and motorcycles. It can be used as a rubber seal in gasoline/diesel engine extreme fuel systems to prevent oil and liquid leakage.

2. Chemical industry: Used for the production and transportation equipment of various chemical reagents, especially acids, esters, aromatic hydrocarbons, and animal and vegetable oils and fats.

3. Petroleum industry: used for various types of equipment such as pumps, valves, pipelines, etc., sealing includes oil, fat, organic solvents, and corrosive media.

FAQ

Q1. What sizes do you have?

A: We have all sizes of AS568 standard and JIS B 2401standard, and about 3000 non-standard sizes, we also can produce the size according to your requirement.

Q2. Do you have any certificates?

A: We have IATF16949:2016 certificate, ROHS certificate, PAHS certificate, REACH certificate and FDA certificate.

Q3. Can I get some samples before order?

A: Yes, we can provide free samples. You only need to pay for the freight.

Q4. What is the lead time?

A: The lead time for samples is 1-3 days. The lead time for mold is 1-2 weeks. The lead time for batch order is 1-3 weeks.
