Product Advantage

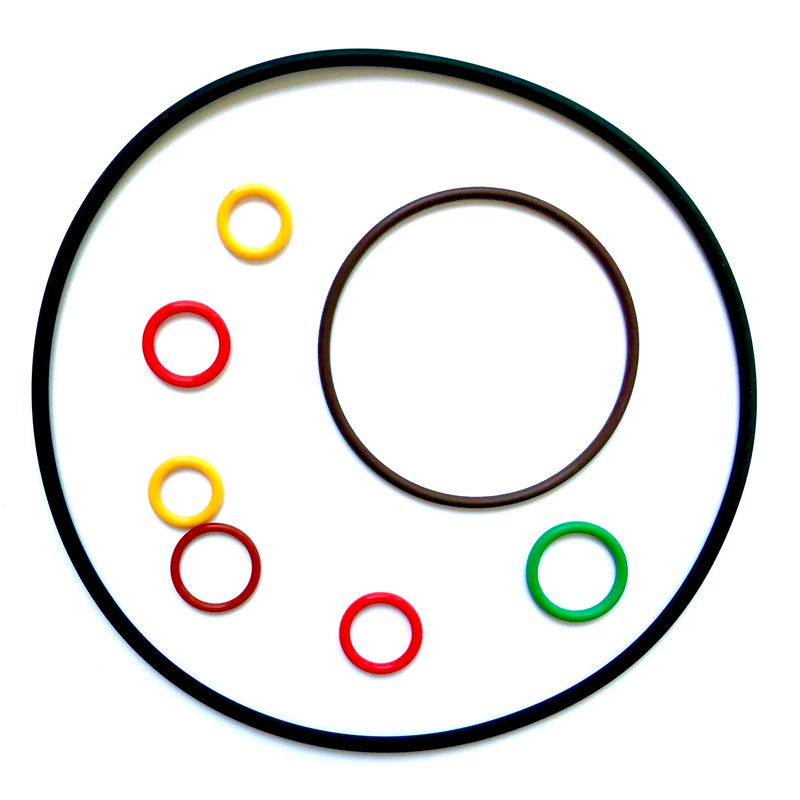

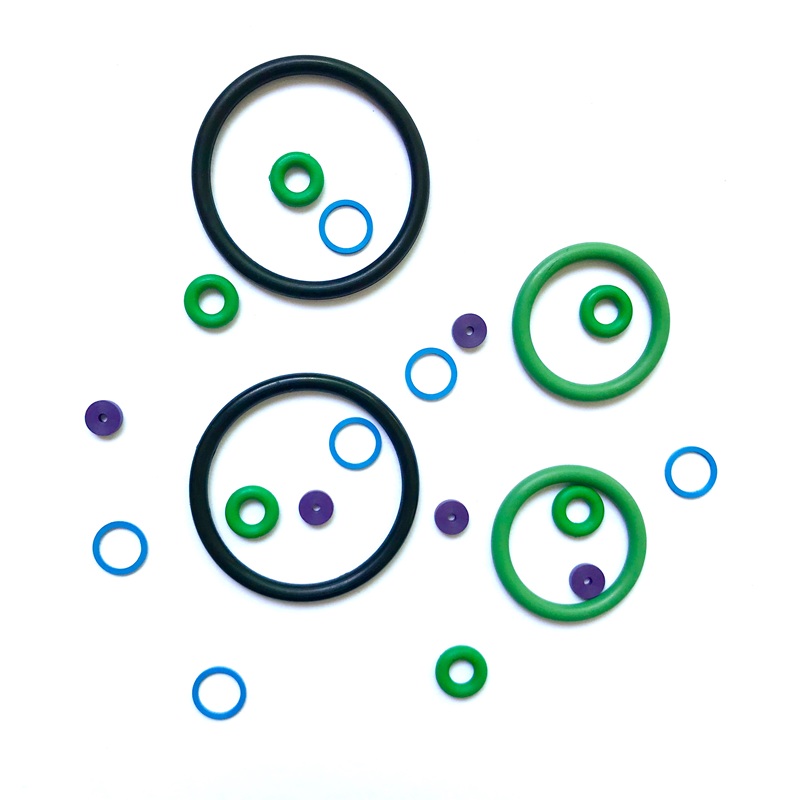

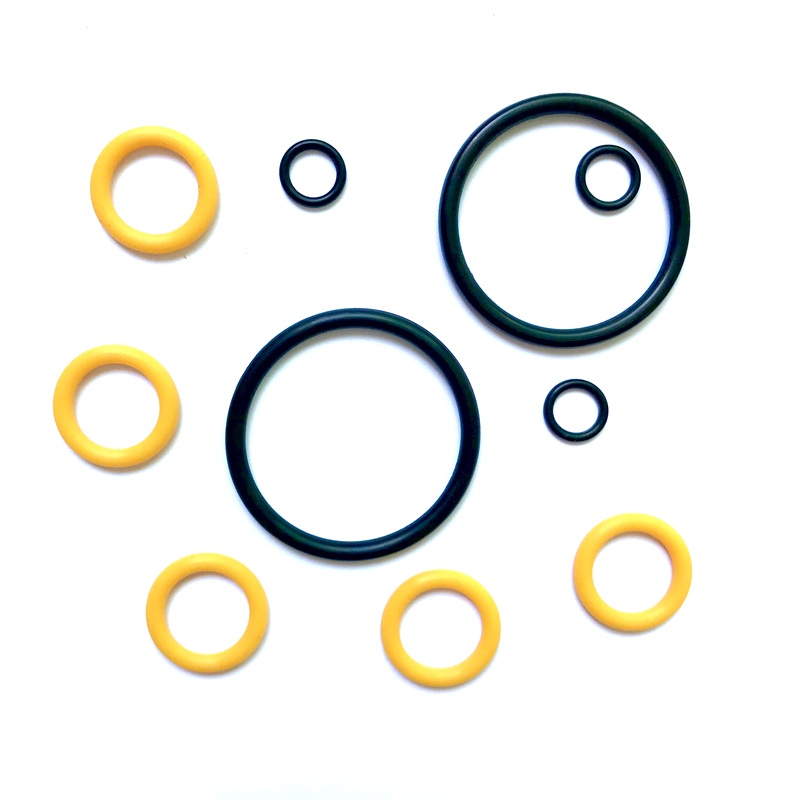

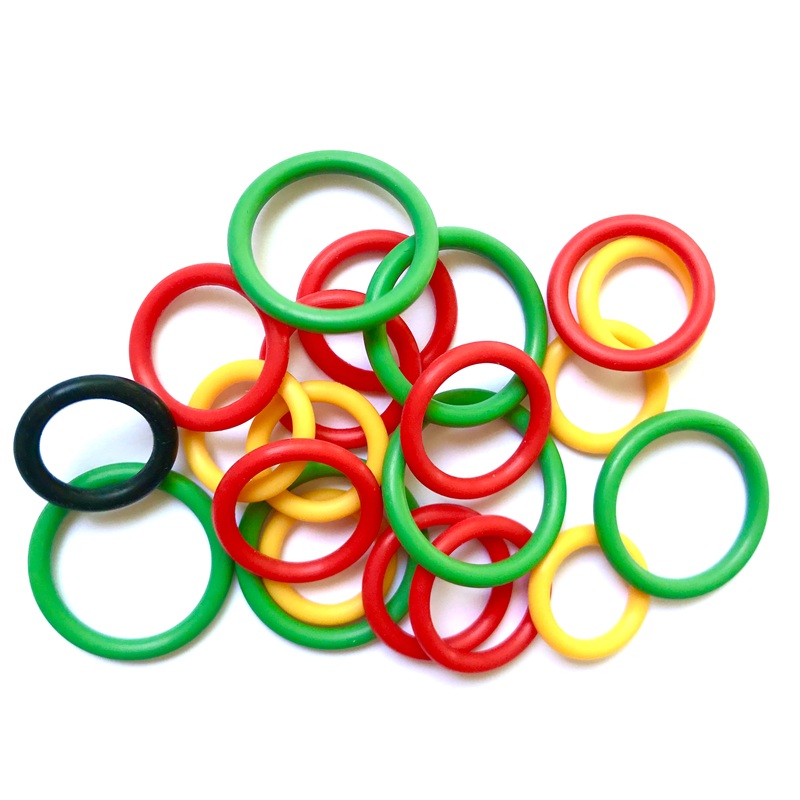

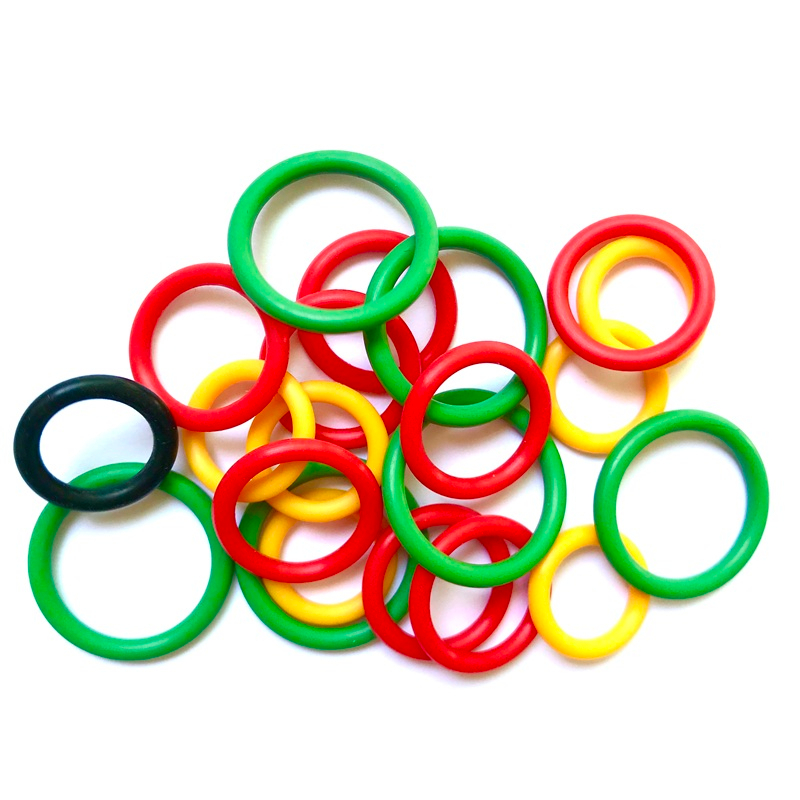

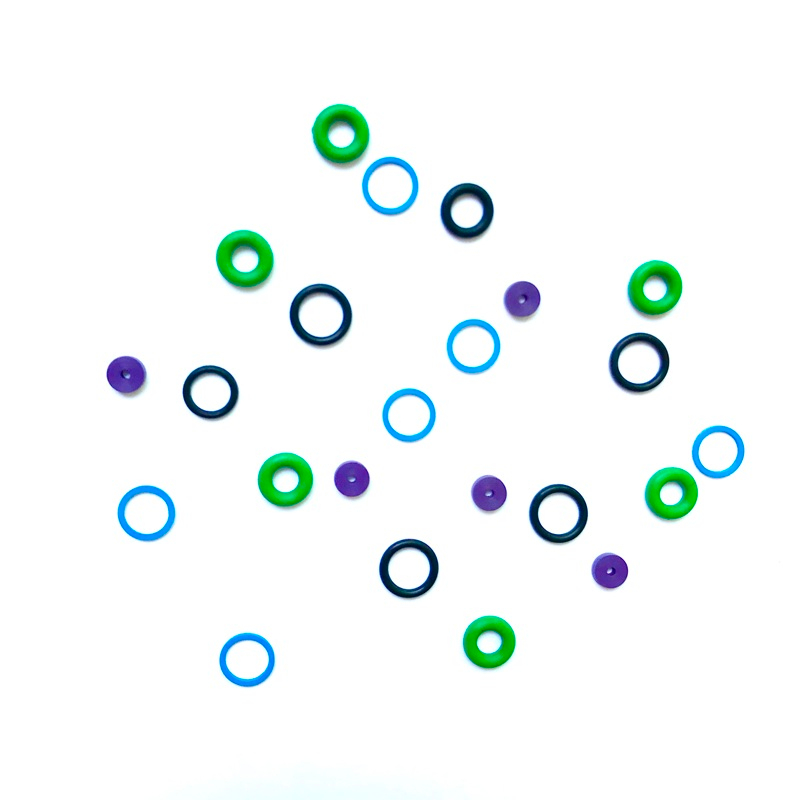

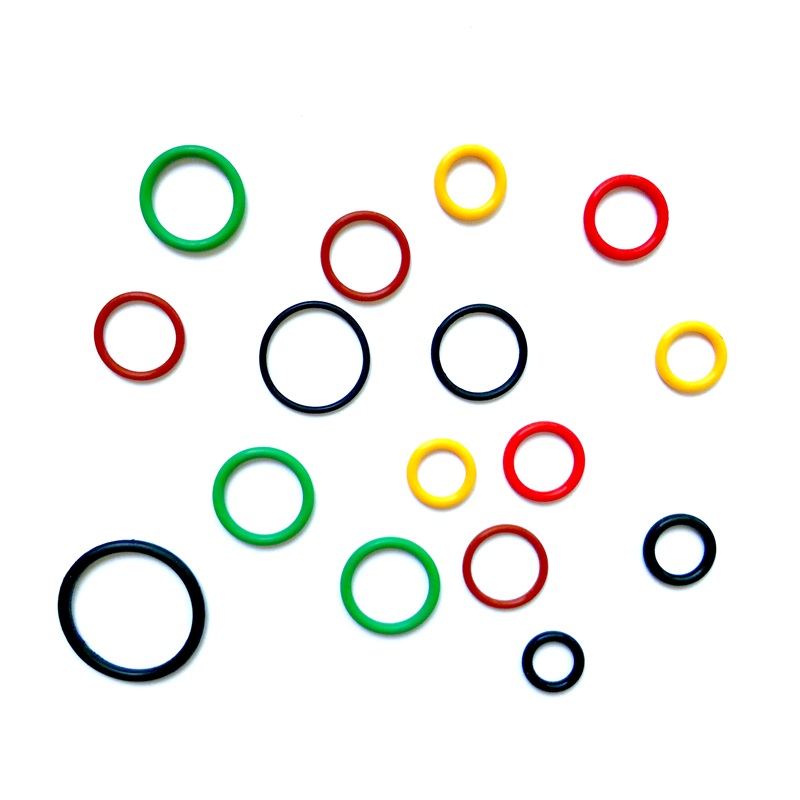

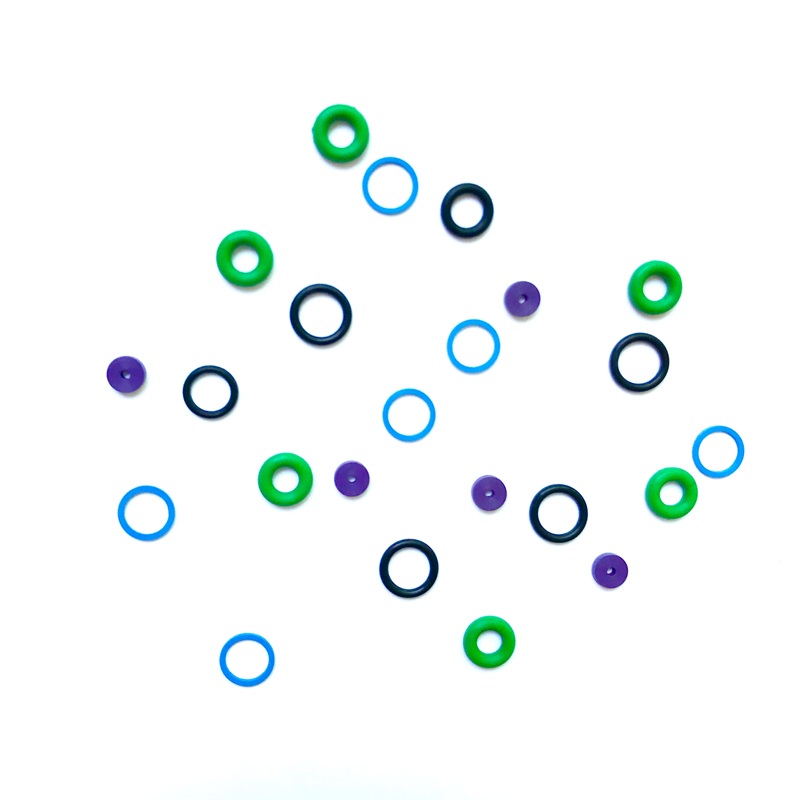

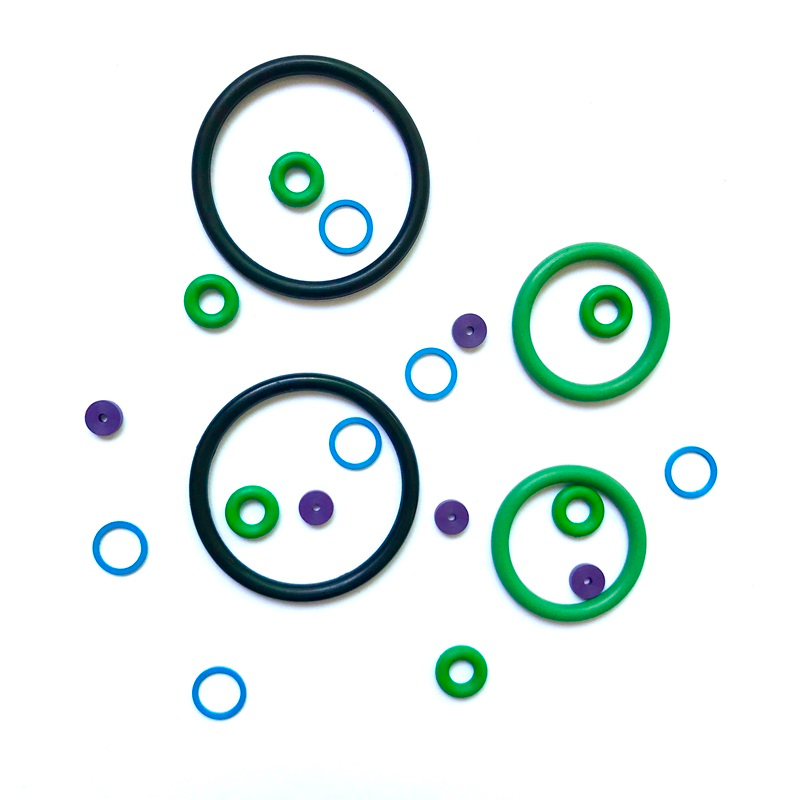

1. Silicone rubber O-ring is made of new high-quality silicone rubber and produced through molding process. Its surface is smooth, without burrs or cracks. High softness, good resilience, and the minimum hardness can reach 10 Shore A.
2. The basic silicone rubber O-ring is a food grade O-ring, and we can provide its FDA certificate. Silicone rubber O-ring can be mixed with different colors by adding food grade dyesand, even colourful surfaces. If no color is added, it will be transparent O-ring with good transparency. Fluorescent powder can also be added to make a fluorescent O-ring.
3. Silicone rubber O-ring has excellent heat resistance, cold resistance, ozone resistance, and aging resistance functions. The temperature resistance range is -60 ℃ to 220 ℃. It can still maintain high elasticity at low temperatures without becoming brittle. Its excellent physiological inertia allows it to be exposed to sunlight and air for a long time.
4. Silicone rubber O-ring has good sealing and elasticity. It has the characteristic of low compression permanent deformation, which can form a perfect seal under compression. Food grade low-temperature resistant silicone rubber O-rings are commonly used in containers in refrigerator seal, such as ice making molds and beverage cups.
Item | Unit | Silicone O-Ring | |
Normal Condition | Color | / | All |
Hardness | Shore A | 10—80 | |
Tensile Strength | MPa | 5—9 | |
Elongation | % | 129—980 | |
Compression Set (175℃/22h) | % | 9—36 | |
Hot Air Aging (100℃/70h) | Hardness Change | Shore A | -2——5 |
Tensile Strength Change | % | -4——6 | |
Elongation Change | % | -14—5 | |
Oil Resistance Test (IRM901#) (150℃/70h) | Hardness Change | Shore A | -3—9 |
Tensile Strength Change | % | -4—11 | |
Elongation Change | % | -1—2 | |
Volume Change | % | 4—12 | |
Oil Resistance Test (IRM903#) (150℃/70h) | Hardness Change | Shore A | -14——25 |
Tensile Strength Change | % | -6——53 | |
Elongation Change | % | -5——48 | |
Volume Change | % | 34—52 | |
Low Temperature Resistance Test | Brittle Temperature | ℃ | -55——100 |
Silicone Rubber (VMQ)
Temperature Range: -60 °C to 225 °C
Advantage: Excellent heat and cold
resistance, harmless to human body
Disadvantage: Substandard oil resistance
Use: Food & Medicine situation (FDA)
Here are specific application scenarios for Silicone rubber O-rings:
1. Automotive industry: Used for shock absorption and sealing of core components such as engines and transmissions. Especially in electric vehicle seal, used for key parts such as battery packs and charging interfaces, to ensure the safety of high-voltage and thermal management systems.
2. Electronics and Electrical: Utilizing its electrical insulation properties, used for waterproof seal of devices such as mobile phones and computers, sealing of electronic components such as TV anode covers, and as conductive rubber buttons for remote control devices.
3. Food and Medical: Silicone rubber O-rings are non-toxic, odorless, chemically inert. So widely used in medical devices such as infusion sets. It is also widely used in the food industry, such as coffee machine seal and water dispenser seal.
Q1. What sizes do you have?
A: We have all sizes of AS568 standard and JIS B 2401standard, and about 3000 non-standard sizes, we also can produce the size according to your requirement.
Q2. Do you have any certificates?
A: We have IATF16949:2016 certificate, ROHS certificate, PAHS certificate, REACH certificate and FDA certificate.
Q3. Can I get some samples before order?
A: Yes, we can provide free samples. You only need to pay for the freight.
Q4. What is the lead time?
A: The lead time for samples is 1-3 days. The lead time for mold is 1-2 weeks. The lead time for batch order is 1-3 weeks.
